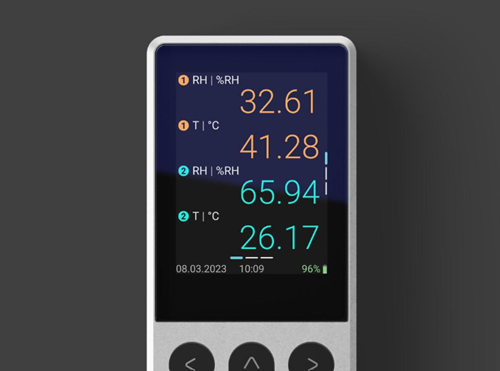

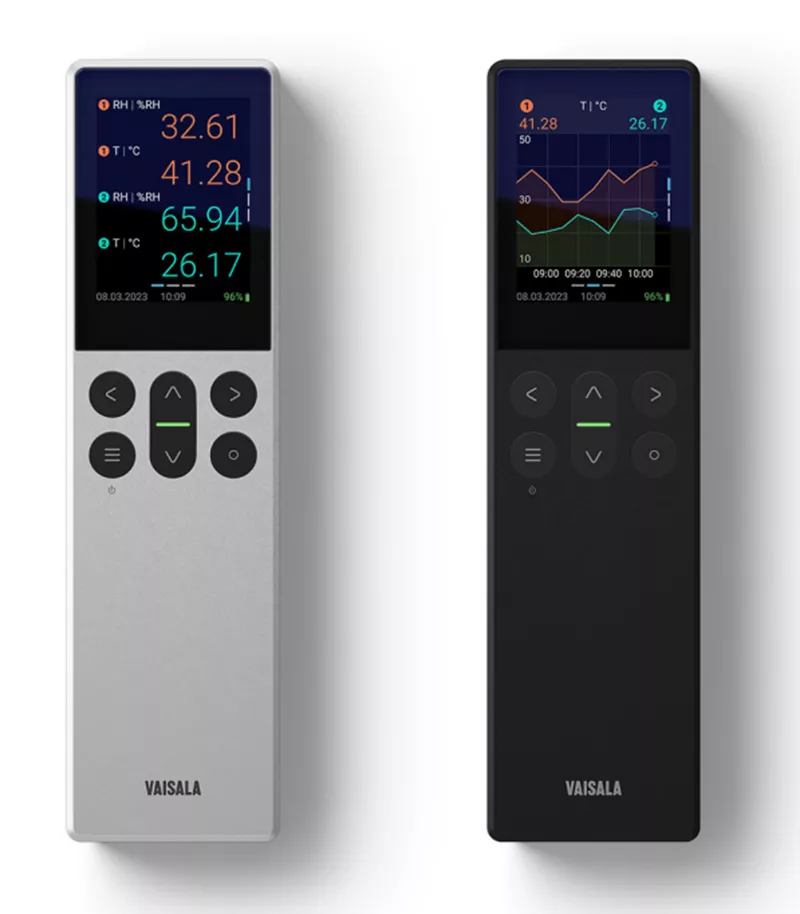

Indigo80 Handheld Indicator

(For field sampling and calibration, data analysis and diagnostics)

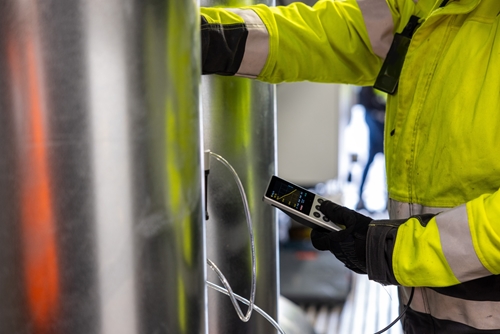

The latest addition to the Indigo family of transmitters and probes, the Indigo80 is a compact, handheld indicator and data logger. Ideal for field sampling, data analysis and diagnostics, the Indigo80 enables measurements for multiple parameters:


  • Humidity

  • Temperature

  • Dew point

  • Carbon dioxide

  • Hydrogen peroxide vapor

  • Moisture in oil



Features:



  • Dual-probe, high-accuracy portable diagnostics and data logging tool. Log up to a month’s worth of measurement data.

  • Industry standard USB-C interface for data uploads and battery charging. Lithium-ion battery provides a typical operation time of 10 hours.

  • Ideal for spot-checking, process monitoring, configuring, troubleshooting, calibrating, and adjusting Vaisala Indigo-compatible probes and transmitters.

  • Robust, durable aluminum body is resistant to chemicals and dust.

  • Multilingual, menu-based user interface available in 10 languages.  View live measurement data as numbers or graphs.

  • Intuitive user interface that guides the user if needed. Designed to be easy to use.

TECHNICIAL SPECIFICATIONS
Operating Voltage: 15–30 V DC, 24 V AC
Compatible Probes: HMP1, HMP3, HMP4, HMP5, HMP7, HMP8, HMP9, HMP80L, HMP80N, TMP1, DMP5, DMP6, DMP7, DMP8, DMP80A, DMP80B, GMP251, GMP252, HPP271, HPP272, MMP8
Max. number of connected probes: 2
Battery Type: Rechargeable lithium-ion battery
Operation time (continuous use): 10 h at +20 °C (+68 °F)
IP Rating: IP40
