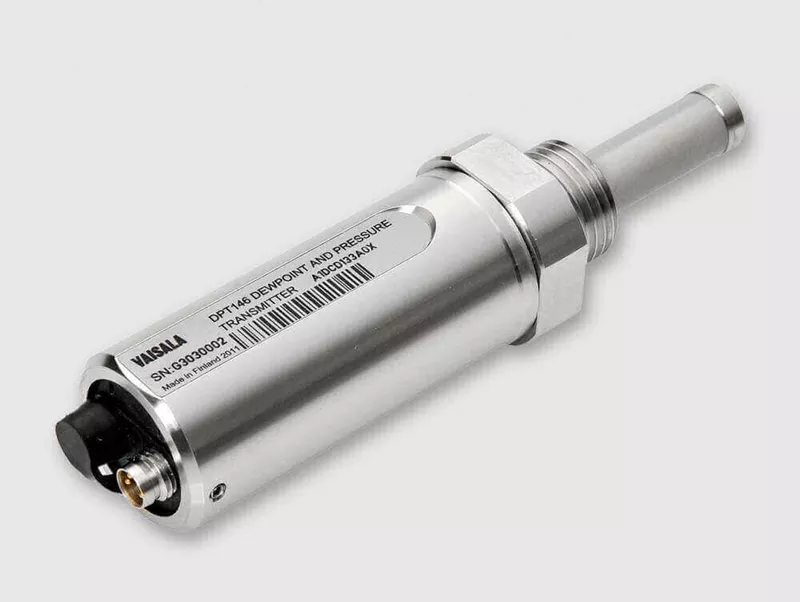

Dew Point and Pressure Transmitter DPT146

(For Compressed Ait Measurement)



DPT146 for compressed air measurement makes monitoring compressed air simple and convenient. The DPT146 measures both dew point and process pressure simultaneously, and is the ideal choice for anyone using or monitoring compressed air.

TECHNICIAL SPECIFICATIONS
Output: 0...5V; 0...10V; 0...20mA; 4...20mA
Operating Voltage: 21...28VDC
Measurement Range Absolute Pressure: 1...12bar (14,5...174psi)
Accuracy : ±4%FS
Measurement Range Td: -70...+30°C (-94...+86°F)
Accuracy : ±2°C (±3,6°F)
Measurement Range T (available if output RS-485 only selected): -40...+80°C (-40...+176°F)
Accuracy : ±0.5°C (±0.9°F) IP Rating: IP66 ±0.5°C (±0.9°F)
IP Rating: IP66
