Humidity Module HMM100
(for Environmental Chambers)

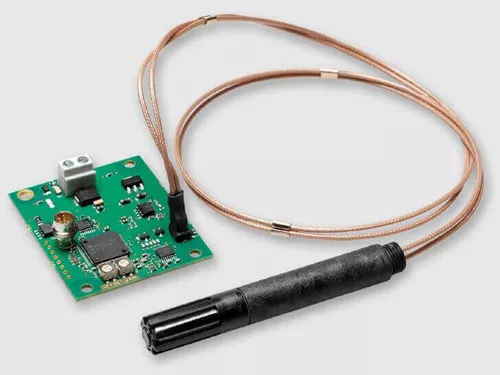

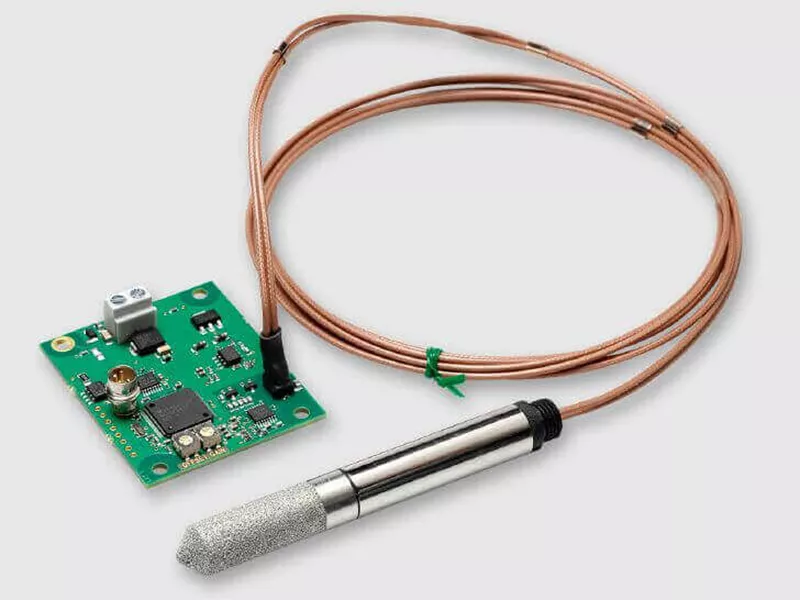

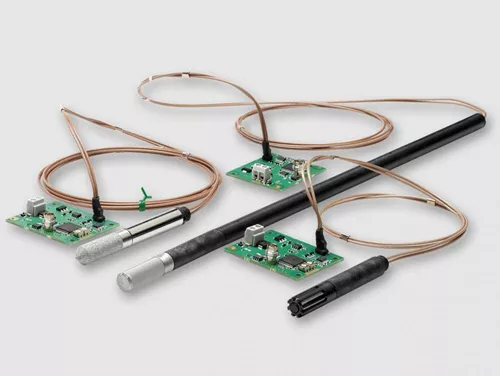

The Vaisala HUMICAP Humidity Module HMM100 is an open frame module for integration into environmental chambers. The modules provide a single analog output channel for relative humidity (RH) or dew point (Td).
Practically maintenance-free HMM100 is an open frame module for integration into environmental chambers. Excellent measurement accuracy with Vaisala HUMICAP 180R sensor.
Features
- Full temperature compensation over the operating temperature range of -70˚C ... +180˚C
- High temperature tolerance, also suitable for heat sterilization
- Excellent measurement accuracy with Vaisala HUMICAP® 180R sensor
- Durable Easy field calibration by trimmers
TECHNICIAL SPECIFICATIONS
| Output (2-wire model): | 4...20mA |
| Output (3-wire model): | 0...1V; 0...5V; 0...10V; 0...20mA |
| Operating Voltage (2-wire model): | 24VDC |
| Operating Voltage (3-wire model): | 15...35VDC or 24VAC ±20% |
| Measurement Range RH: | 0...100%RH |
| Accuracy (at -20...+40°C, between 0...90%RH) : | ±2%RH |
| Measurement Range Dewpoint (Td) : | -20...+100°C (-4...+212°F) |
| Accuracy : | ±2°C (±3.6°F) Td |
