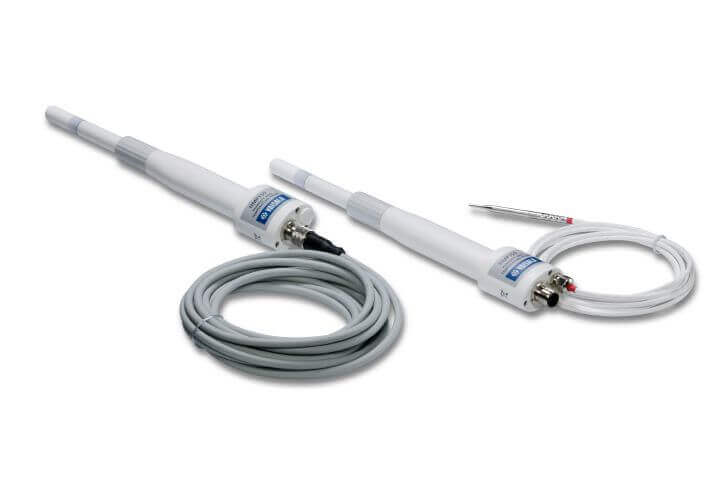

HUMICAP Humidity and Temperature Probe HMP155

Vaisala's HUMUCAP HMP155 is a plug-and-play sensor that has excellent stability and withstands well even in harsh environments. The probe provides reliable humidity and temperature measurement and it is designed specifically for demanding outdoor applications.

TECHNICIAL SPECIFICATIONS
Output: 0...1V; 0...5V; 0...10V
Operating Voltage: 7...28VDC
Measurement Range RH: 0...100%RH
Accuracy (at +15...+25°C, between 0...90%RH) : ±1%RH
Measurement Range T : -80...+60°C (-112...+140°F)
Accuracy (At -80...+20°C): ±(0.226 – 0.0028 x temperature)°C
Accuracy (At +20...+60°C): ±(0.055 – 0.0057 x temperature)°C
IP Rating: IP66
