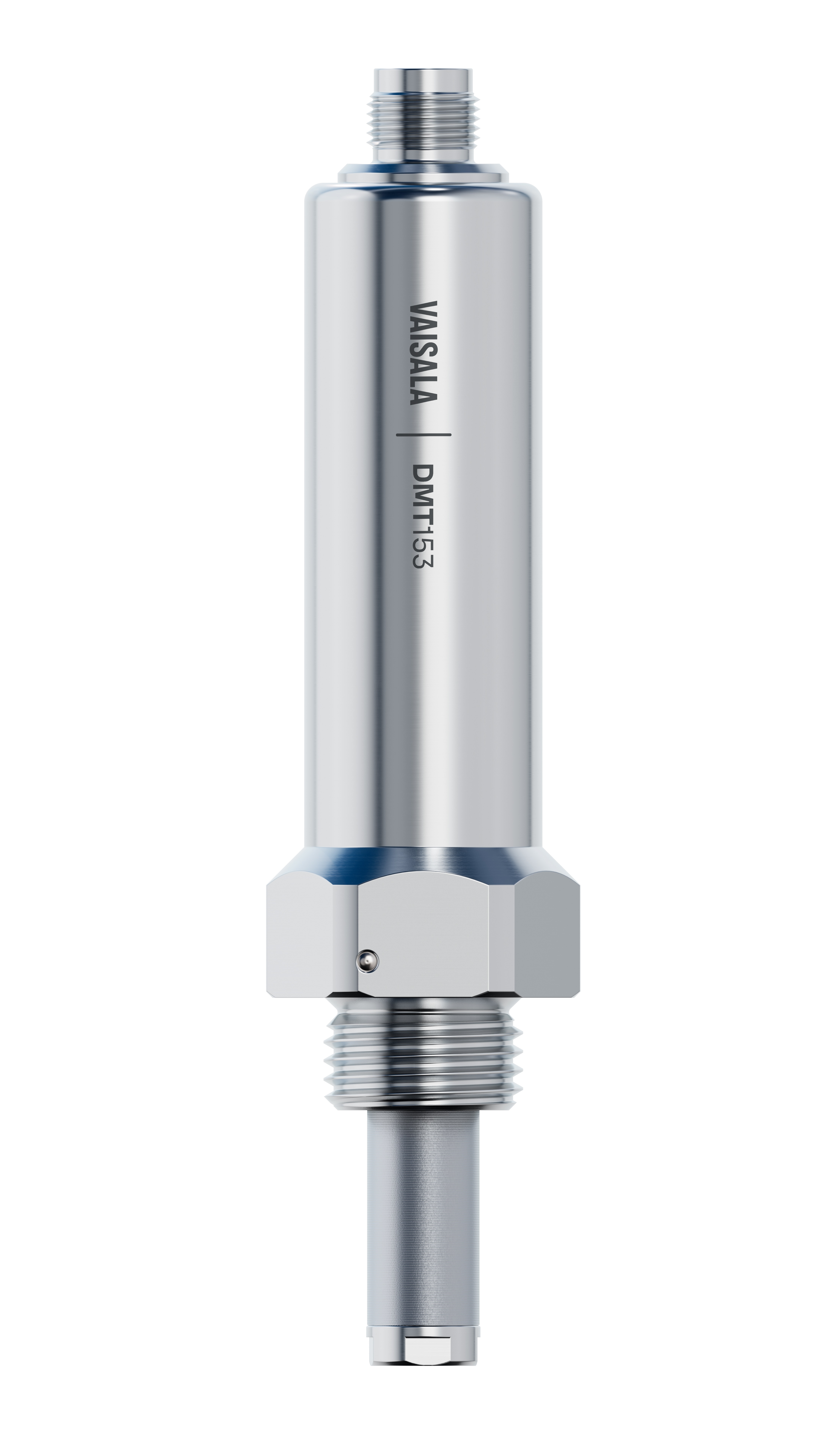

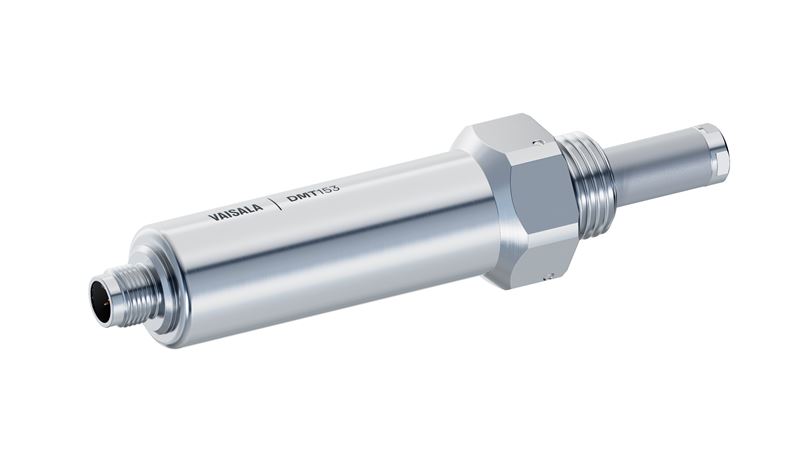

Vaisala DMT153: Dew Point Transmitter with -80°C Td Accuracy
For low dew point measurements
DMT153 is designed for measuring low dew point, even down to −80 °C (−112 °F) Td/f. DMT153 is the ideal choice for low-humidity industrial applications such as semiconductor and battery manufacturing, pure gas production, demanding compressed air systems, and applications using pure gases.
TECHNICIAL SPECIFICATIONS
| Output : | 0...5V; 0...10V; 0...20mA; 4...20mA; RS-485 |
| Operating Voltage: | 21..28VDC |
| Measurement Range Td: | -80...-20°C Td/f (-112...-4°F Td/f) |
| Accuracy : | from -80…-40 °C Td/f (-112…-40 °F Td/f) : ±2 °C (±3.6 °F), from -40…-20 °C Td/f (-40…-4 °F Td/f) : ±3 °C (±5.4 °F) |
| Operating Process Pressure: | 50 bar |
| Operating Temperature: | -40…+70 °C (-40…+158 °F Td/f) |
| Measurement Parameters: | ppm, Td/f |
| IP Rating: | IP66 |
